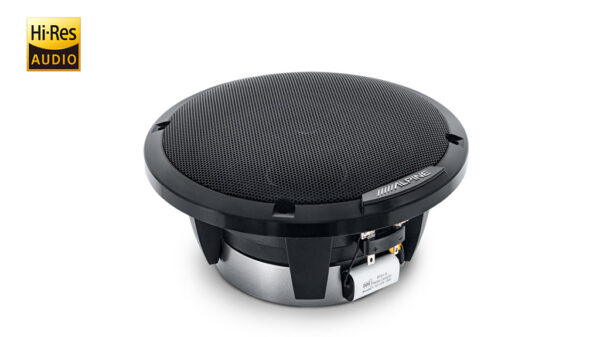

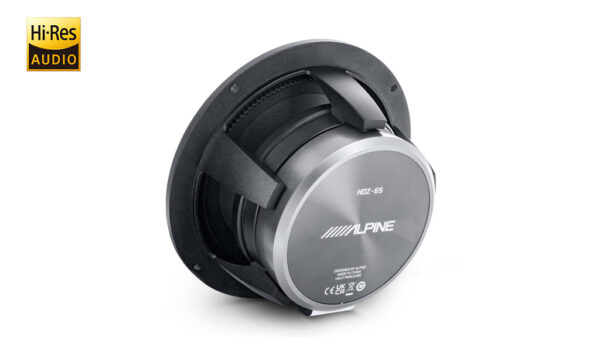

HDZ-65 Alpine Status coaxial speakers
$1,299.00
Alpine Status car audio sound system is now available in New Zealand. Using the same engineering and design concepts drawn from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created “Alpine Status” to achieve High-Resolution Sound at a more approachable and accessible price point. The Alpine Status system is also extremely flexible: all components can be purchased and used in “stand-alone” configuration.
For the audiophile that’s looking to build an ideal sound system, Alpine Status offers a wide range of Hi-Res Audio enabled speakers. The HDZ-65 Coaxial 2-Way speakers with a high-resolution bandwidth of 55Hz – 40kHz includes 170mm door woofers with an integrated 40mm Slim-Fit tweeters.
All speaker cones are made from the same Carbon Composite material to create a unified timbre identity during playback. They get very close to the AlpineF#1Status speakers look and feel, using a very similar constructing and motor assembly, as well as the identical build-materials for highest sound quality.
Rapid Radio
is New Zealand's exclusive Auckland Alpine Status dealer.
Hi-Res Audio Made Accessible
The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction – at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. Hi-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.

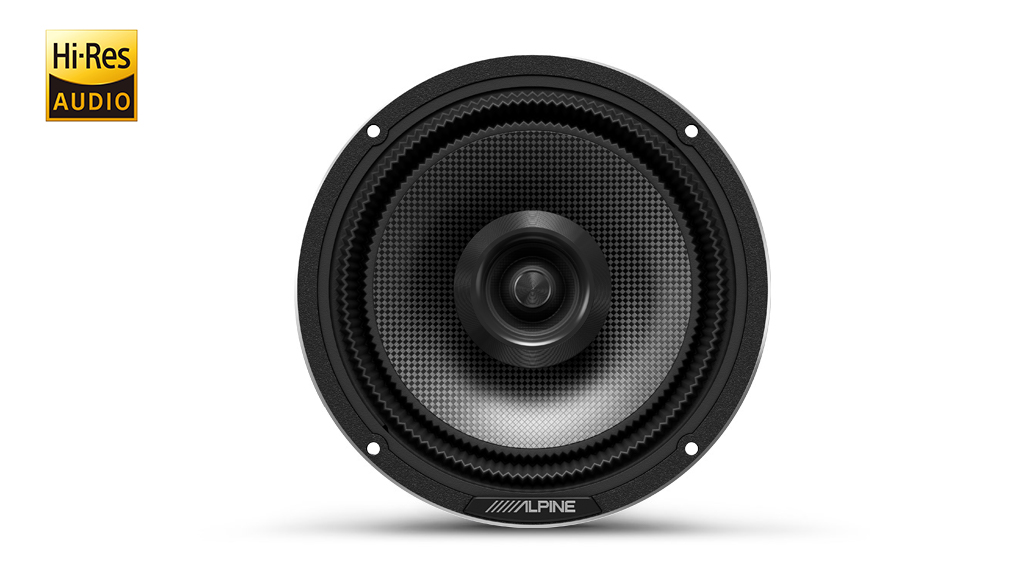

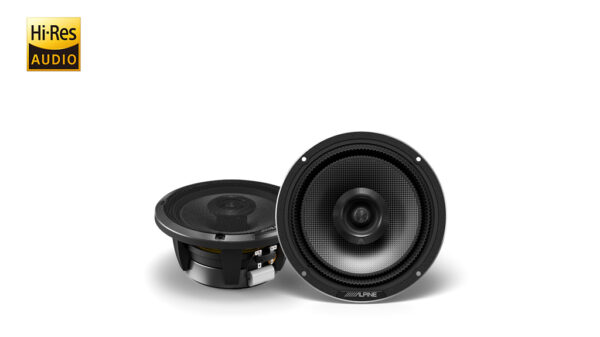

Coaxial 2-Way Speaker System
Drawing from AlpineF#1Status trickle-down technology and materials, these Hi-Res Audio certified speakers deliver highest audiophile sound quality up to 40kHz in your vehicle.
The 2-way coaxial system consists of 170mm door woofers with integrated 40mm tweeters.
Double-Gathered Edge
Yet another trickle-down technology from the AlpineF#1Status speakers: the double-gathered edge allows maximum cone excursion with excellent cone control and stability. This reduces sound distortion caused by cone wobble at higher volume levels.
Carbon Fiber Cones
All speakers in this set (as well as the HDZ-110 Alpine Status subwoofer) use backed carbon composite cones to achieve a fully unified timbre identity – resulting in excellent harmonics. Carbon is very lightweight and stiff, resulting in high dynamics and low distortion. Backed carbon composite technology is also used in race-car monocoques for its light weight and high crash resistance.
40mm Tweeter
The integrated 40mm Hi-Res Audio tweeters sound simply amazing and play up to 40kHz. They include an integrated wave-guide, tuned-back chamber and a powerful neodymium magnet.
Alpine Status Full System
Alpine Status features many components that are optimised in both power and performance as a complete system to play at their intended high-resolution spec for excellent, audiophile sound quality. However, each component can be purchased independently for custom system building.
Features
- Hi-Res Audio certified 2-Way coaxial speaker system
- AlpineF#1Status speaker trickle-down technology
- Maximum Peak Power: 300 Watts
- Maximum RMS Power: 100 Watts
- Woofer diameter: 170mm (177mm with attached grill)
- Aluminum die-cast baskets
- Backed carbon fiber cones
- Double-gathered edge
- Included speaker grills
- Integrated Wave Guide on tweeters
Specifications
- Impedance 4Ω
- Sensitivity 88dB SPL (2.83 V @ 1 m)
- Frequency Response: 55Hz – 40kHz
- Mounting depth: woofer 67mm / mid-range 39mm
- Cutout diameter: woofer 142mm / mid-range 79mm
- Recommended amplification: up to 100W RMS per channel
- Ferrite magnet (woofer)
- Neodymium magnet (mid-range speaker and tweeter)
Studio Recording Spec
Alpine Status achieves 192kHz/24Bit playback, which is 6.5 times the amount of digital audio data in a standard CD or digital streaming service and exceeds the standard High-Resolution spec of 96kHz/24Bit found in most aftermarket sound solutions. This allows Alpine Status to capture and accurately reproduce details like the breath of the artist or a musician’s subtle interaction with an instrument. This capability not only reproduces music to the artist’s original intention, but emulates the experience of a studio recording in the vehicle.
